Duotight Push-In Fitting | 8 mm (5/16") x 1/2" BSP Female

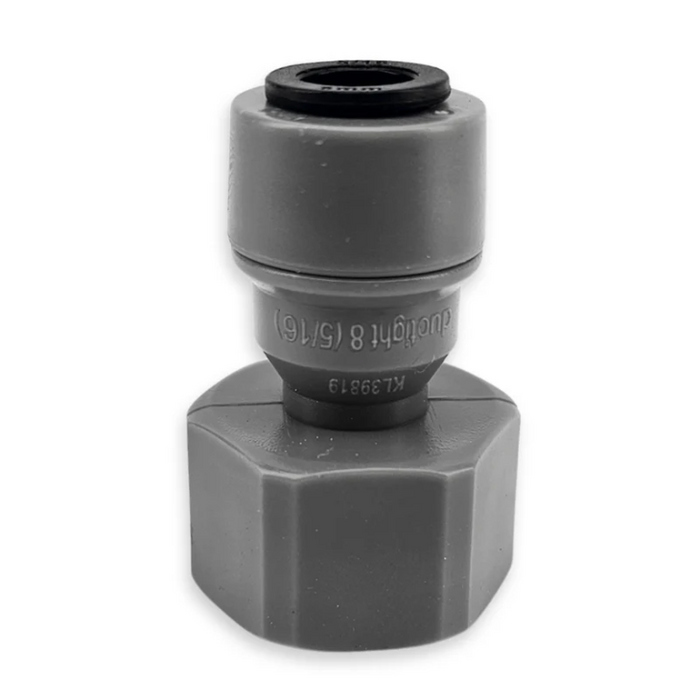

Duotight 8 mm x 1/2" BSP Female Push-In Fitting

This Duotight fitting connects 4mm ID x 8mm OD EVABarrier tubing or 5mm ID x 8mm OD EVABarrier tubing to compatible 1/2" male BSP threaded hardware. It is a clean, clamp-free way to build compact draft gas and beverage line connections around regulators, manifolds, valves, and other threaded kegging parts.

The push-in side grips 8mm OD tubing, while the threaded side has a female 1/2" BSP connection. KegLand lists this as a Gen 2 Duotight fitting with a POK body, color-coded black collet for 8mm tubing, stainless locking teeth, and EPDM plus silicone seals for better cold-side sealing performance.

Best uses

• Connecting 8mm OD EVABarrier tubing to compatible 1/2" male threaded fittings.
• Draft beer and beverage line builds where a push-to-connect fitting is cleaner than a barbed fitting and clamp.
• Gas or liquid-side kegging setups using Duotight and EVABarrier components.

Product details

• Tubing side: 8mm push-in connection for 8mm OD tubing
• Thread side: 1/2" BSP female thread
• Compatible tubing: 4mm ID x 8mm OD and 5mm ID x 8mm OD EVABarrier line
• Body material: POK engineering plastic, per KegLand's current Gen 2 listing
• Seals: EPDM plus silicone O-rings
• Manufacturer part number: KL39819

Installation notes

Cut tubing square before inserting it into the fitting. Push the tubing in firmly until it seats fully. To remove the tube, press the collet inward and pull the tube out.

Compatibility note: This fitting is for 8mm OD tubing. It is not compatible with 6mm ID x 10mm OD line.

KegLand notes that this fitting includes a silicone washer on the threaded side, so thread tape is normally not needed. Do not use Duotight fittings with bleach or chlorinated cleaning chemicals, which can damage the fitting material and stainless components.
