Kegco Elite Series Dual Body CO2 Regulator – Triple Gauge, Dual Output

Elite Dual-Body CO2 Control for Two Kegs, One Tank

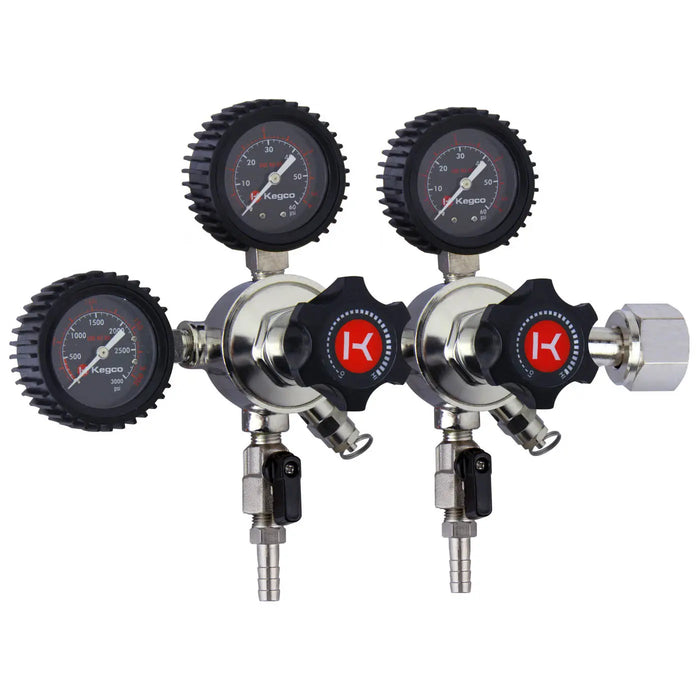

Dial in perfect carbonation on two different kegs from a single CO2 tank with the Kegco LHU5DB Elite Series Dual Body CO2 Regulator. This triple-gauge, dual-output regulator gives you precise, independent pressure control for each keg, while the third gauge keeps an eye on remaining tank volume so you never get caught off guard mid-pour.

Key Features

• Dual-body, dual-output design: Dispense two kegs at different pressures from the same CO2 cylinder, ideal for serving different beer styles side by side.
• Triple gauge feedback: Two low-pressure gauges show individual keg pressures, while the high-pressure gauge displays remaining CO2 in the tank.

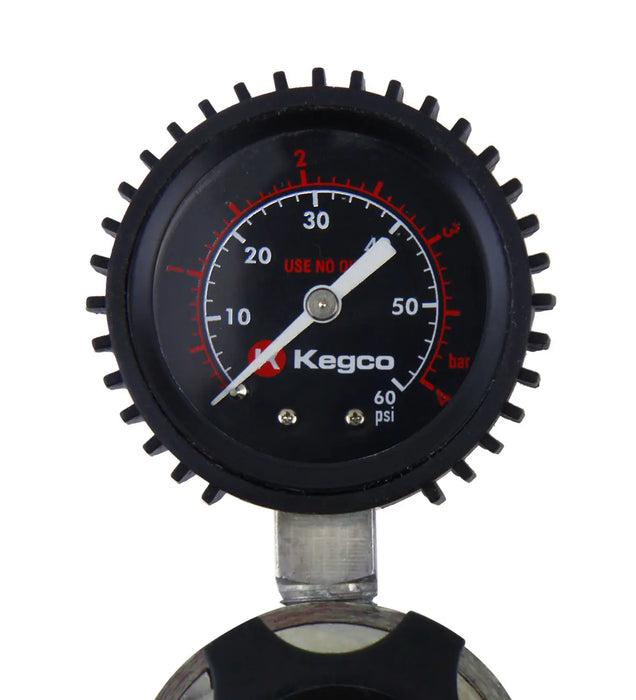

• Stylish, protected gauges: Black-faced gauges with high-contrast red and white markings are easy to read and protected by rugged rubber gauge boots.
• Precise pressure adjustment: Large ergonomic adjustment knobs make it easy to fine-tune serving pressure from 0–60 PSI for each keg.
• Durable build: Chrome-plated brass construction stands up to daily draft use in home kegerators, keezers, and small bars.
• Built-in safety systems: Manual pressure release valves plus internal pressure relief valves that vent between 55–65 PSI help protect your lines and kegs.
• Clean, leak-free operation: A built-in tank washer helps prevent leaks at the cylinder connection, while a sintered metal filter in the stem keeps contaminants out of the regulator.

Technical Details

• Regulator type: Dual-body CO2 draft beer regulator
• Gauge count: Triple gauge (two outlet pressure gauges + one tank pressure gauge)
• Pressure range: 0–60 PSI outlet adjustment for each body
• Outlet fittings: Two 5/16" hose barbs for standard gas line
• Material: Chrome-plated brass body with rubber gauge boots
• Safety: Manual pressure release valves and internal pressure relief valves (55–65 PSI)
• Filtration: Integrated sintered metal filter in the inlet stem

Ideal Uses & Setup Tips

• Perfect for mixed draft lineups: Serve a crisp lager and a soft, lower-carbonation stout at their ideal pressures at the same time.
• Great for home kegerators and keezers: Upgrade from a single-body regulator when you add a second keg or want more control over carbonation levels.
• Easy pressure dialing: Start with both bodies at your standard serving PSI, then adjust one side up or down for higher- or lower-carb styles.
• Maintenance tip: Periodically check hose clamps, inspect the tank washer, and verify gauge readings to keep pours consistent and leak-free.
