BrewBuilt® Insulated Tubing Kit for X-Series Jacketed Conicals

BrewBuilt® Insulated Tubing Kit for X-Series Jacketed Conicals

Plug-and-play glycol lines with dry-break quick disconnects—clean, efficient, no mess

Purpose-built for the BrewBuilt X-Series Jacketed Conical, this kit includes everything to connect an IceMaster Glycol Chiller to the jacket’s 1.5" tri-clamp inlet and outlet. Premium quick disconnects with shutoff valves provide a true dry break, so you can disconnect for cleaning without dumping coolant on the floor.

Why You’ll Like It

• Dry-break QDs: Shutoff valves on both sides help prevent spills during disconnects
• Faster, cleaner installs: Female QDs are pre-installed on the insulated lines; male QDs mount to the TC adapters
• Better chilling, no sweat: Insulated lines improve efficiency and eliminate line sweating during fermentation and cold crash
• Made for BrewBuilt: Sized and fitted for X-Series conicals and IceMaster chillers

What’s Included

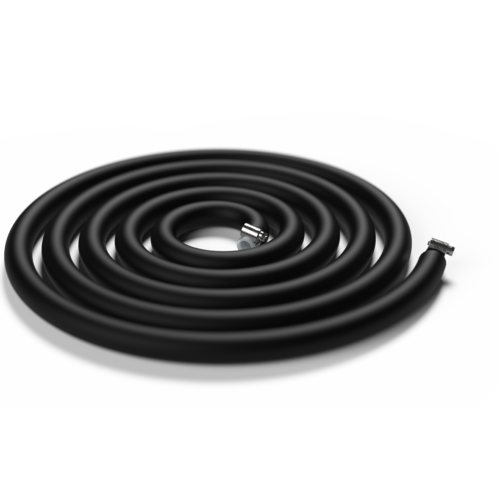

• Insulated Tubing Set — 2 × 6 ft lines
• 2 × High-Temp Plastic Female QDs w/ 3/8" barb
• 2 × High-Temp Plastic Male QDs w/ 1/2" MPT
• 2 × 1.5" Tri-Clamps & 2 × 1.5" TC gaskets
• 2 × 1.5" TC × 1/2" FPT adapters (for jacket IN/OUT)

Setup Notes

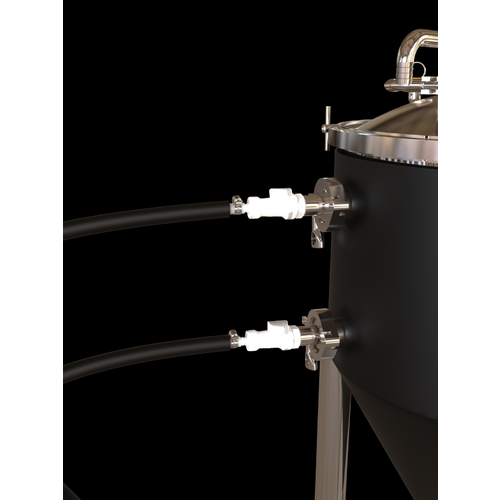

Install the male QDs on the TC × FPT adapters, clamp adapters to the conical jacket ports, then push the insulated lines with female 3/8" barb QDs to your chiller loop. Open valves and set your controller. That’s it.

Compatibility

BrewBuilt X-Series Jacketed Conicals and IceMaster glycol chillers (or any system using 1.5" TC jacket ports and 3/8" barb coolant lines).
